Touch Setter
Touch Setter OMIGS



  • The Touch-Setter is a versatile  setting gauge. It can be used to set the tool length and determine the reference zero point of the machine spindle on conventional boring and milling machines as well as on CNC machining centres.

  • Application: feed tool or spindle face onto spring-loaded probe surface until dial indicator shows "0". The tool or machine spindle face will now be exactly 50.00 mm above the reference plane.

Down load a PDF Specification of the Touch-Setter.

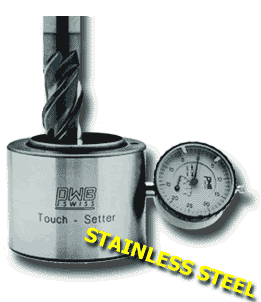

touch Setter with endmill

probe surface   :
housing              :
dial indicator     :
Item - No            :

45 mm hardened
68 mm
0,01 mm resolution
700101
