Auxiliary Equipment
Gauging Tool Storage Handling & Safety TurnKey Package Royal Software Auxiliary Equipment



Spindle taper Cleaners.

In today's environment of absolute precision one of the biggest problems with accuracy is at the point of the tool coupling, the slightest ingress of dirt can give you run out, changes in length and generally problems with repeatability. To combat this all Royal gauges can be supplied with taper cleaners and additional cleaners can be supplied for your machine adaptation.

  • Robust construction with high oil and grease resistance.
  • Plastic injection moulded core with fluted location for cleaning strips ensures accurate sizing and cleaning efficiency.
  • Cleaning strips will maintain adhesion to the taper core due to inset location even under scrubbing action.
  • Cleaning strips at well spaced intervals to move quite large residual partials.

Taper Cleaners

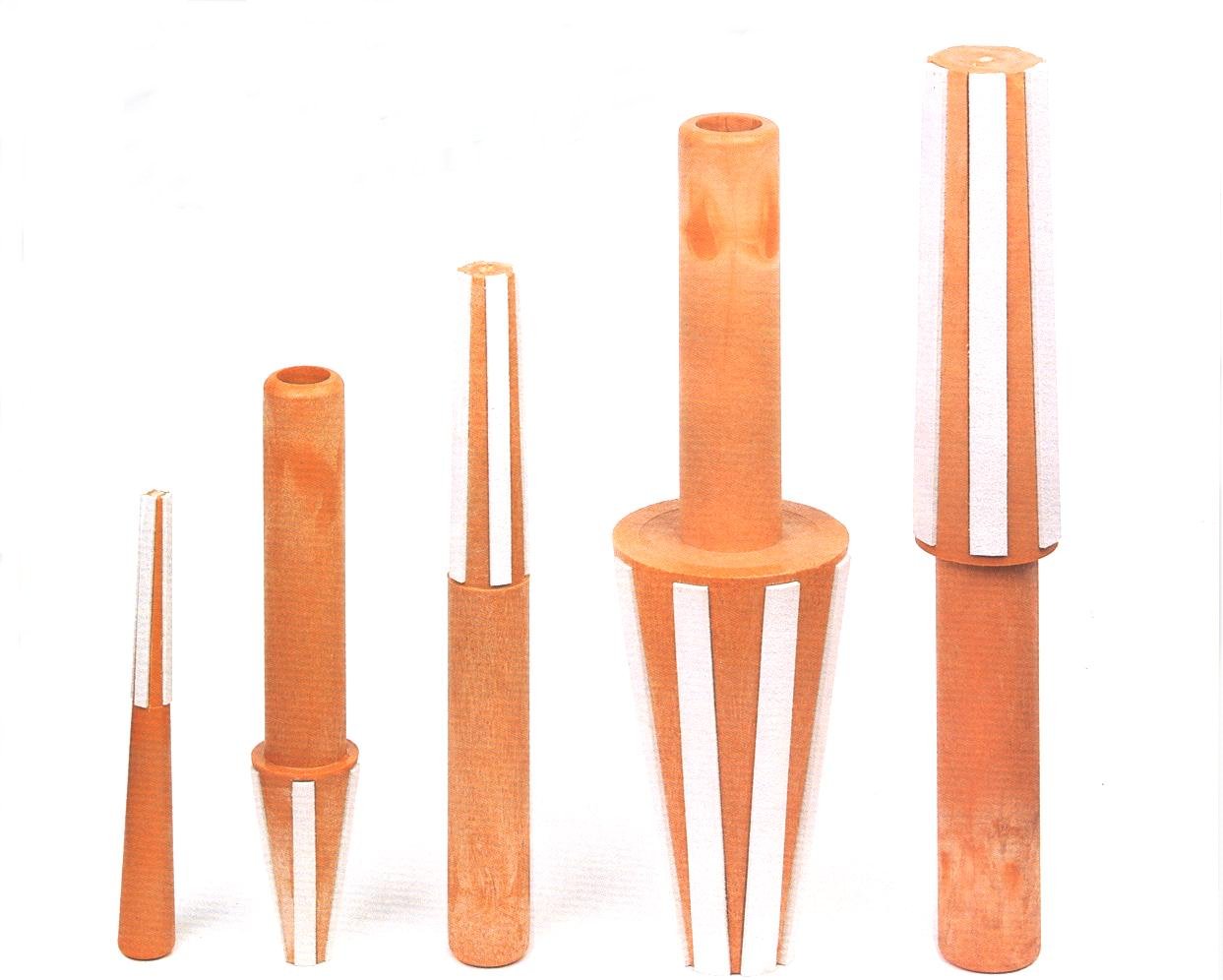

Cleaning the spindle

HSK cleaner

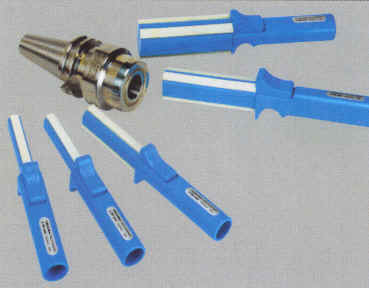

HSK External Cleaner

TKC Cleaner

Clean the shank as well



Type Sizes available.
ISO taper with Pull stud recess ISO/BT 20, 30, 40, 45, 50 & 60.
Morse Taper MT1, 2, 3, 4, 5 & 6.
HSK taper. HSK 25, 32, 40, 50, 63, 80, 100 & 125.
HSK External, Tool Cleaner HSK-63 Cap, or With Handle, HSK 100 Soon.
Expanding Parallel Shank, internal cleaning. Dia. 16, 18, 20, 25, 32, 40, 42
Specials. Please contact us about any special sizes not covered here.
