Tool Boy

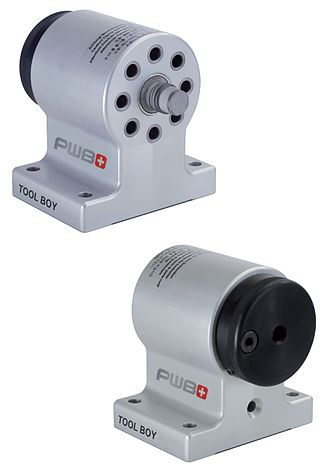

The Tool Boy is a unique tool mounting device for the assembling and disassembling of cutting tools on tool holders and modular tools.
The head can be rotated 360 degrees, allowing convenient access for all operations in one set-up. The clamping can be forced down, rather than horizontally, allowing the Tool Boy to be installed on tool carts. The head is secured in the horizontal position for locking the tool, which means that substantially less force is required to achieve optimum torque transmission.
With the Tool Boy, you eliminate damage to your machine spindles - advantages which pay off very quickly!
Key Benefits
- Requires minimal space on workbench 140 x 100 mm
- 4 x 90 degree indexable
- High degree of user safety
- Optimum position for all manipulations on tooling
- Prevents tools from injuring hands
- No spine torsion thanks to horizontal tool position (e.g. tightening of milling cutter screws)
- Reduced energy level due to optimum ergonomics
- Safe tool handling - even of heavy tools - thanks to automatic locking in desired working position
- Optimum protection of ground tool shafts thanks to brass taper sleeve
- Improved tool clamping ensures longer tool life and protects machine spindle
- No need to re-clamp tools to perform different tasks
- No wear as major elements such as clamping dog and locking disc are hard anodised
- Available for ISO / HSK / KM tapers VDI turning tool and now Sandvik Capto among others
- Bespoke modifications available
|
Basic unit Tool Boy modular suitable for all tool systems
Art. Nr. 400500 Bracket for 2 tool holders for table and wall mounting Art. Nr. 400510 |
|
Tool Holders
| Size | Part No. | ||
|
DIN 69871
DIN 2080 JIS 6339 (MAS-BT) ANSI -CAT-V-Flange |
SK/ISO 30
SK/ISO 35 SK/ISO 40 SK/ISO 45 SK/ISO 50 |
400520
400524 400521 400525 400522 |
|
DIN 69893
HSK - Form A |
HSK-A32
HSK-A40 HSK-A50 HSK-A63 HSK-A80 HSK-A100 |
400544
400545 400540 400541 400542 400543 |
|
DIN 69880
VDI 3425 |
VDI 20
VDI 25 VDI 30 VDI 40 VDI 50 |
400580
400585 400581 400582 400583 |
|
KENNAMETAL
Widia/Tizit |
KM 32
KM 40 KM 50 KM 63 |
400553
400550 400551 400552 |
|
SANDVIK
Capto |
Capto C3
Capto C4 Capto C5 Capto C6 Capto C8 |
400135
400136 400137 400138 400139 |
