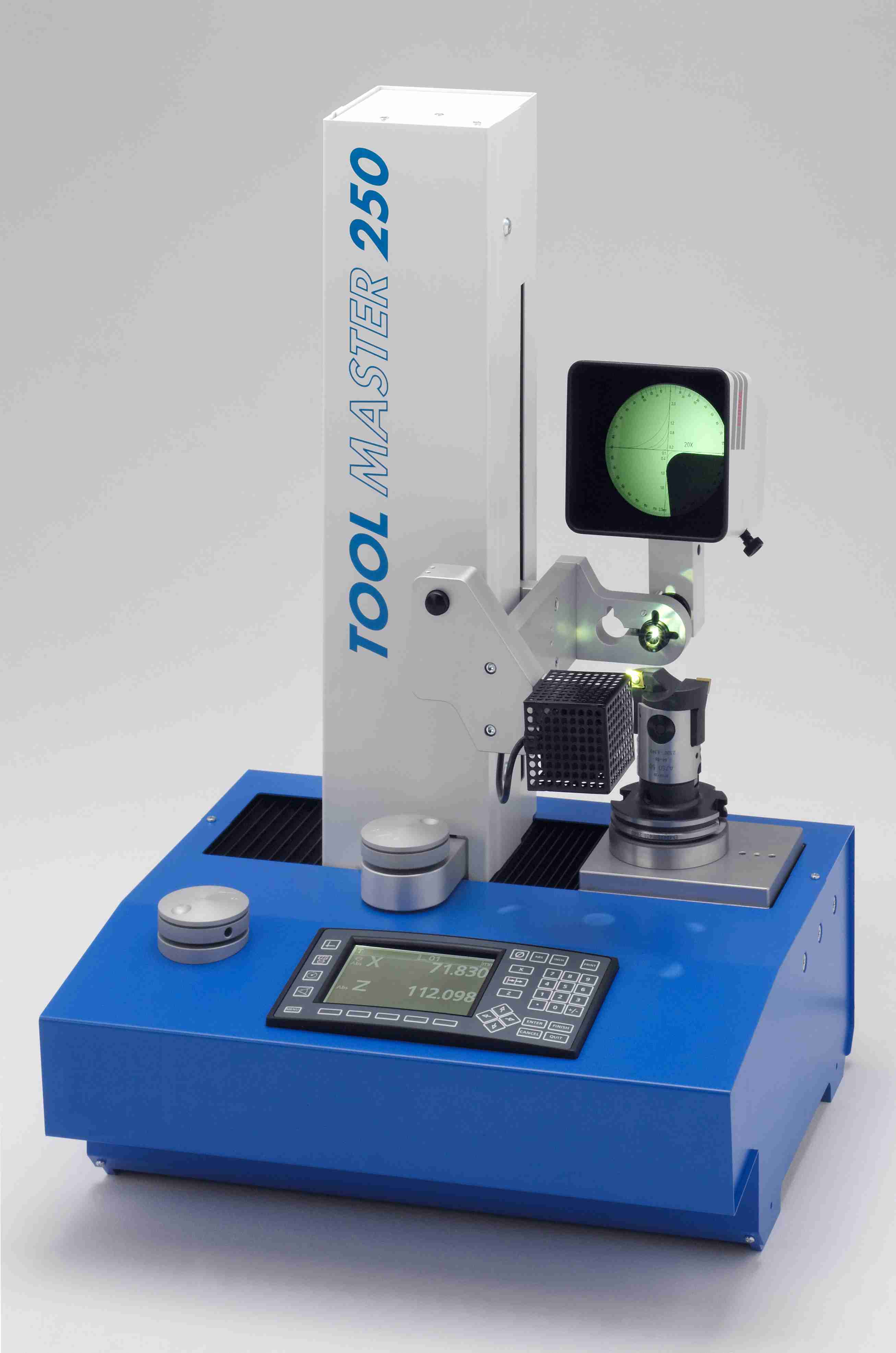

Tool Master 250

The Tool Master 250 uses optical projector technology for the operator interface in conjunction with the easy to use measuring electronics of the TC 100. The projector has a viewable ø110mm screen with a 20 X magnification

It is designed for single-handed manual operation with automatic locking on each axis. Final position is obtained by ergonomically engineered fine adjustment hand wheels.


The Tool Master 250 is designed as a bench-top unit. The base plate is made of thermally stabilized cast-iron and provides maximum rigidity. The measuring column is machined from high-tensile and stress-relieved aluminium alloy - it runs on needle bearing guides and can be traversed to the measuring point without operator fatigue.

Instead of low cost sideways, the pre-stressed linear guide ways with recalculating linear ball bearing allows absolute precision and fatigue-proof working. The counterbalance runs on guide bars in the measuring column.

Pre-loaded guides for the X- and Z-axes ensure long lasting accuracy. Bellow covers protected guides, fine adjustment spindles and measuring scales from pollution in harsh workshop environments.

The measuring accuracy can be increased for the X-axis (diameter) by the electronic compensation of the axis parallelism and the Z-axis (length) by the electronic correction of angle.








Brochure
Tool Master 250
Measuring electronics TC 100

This compact, simple to use readout is packed with features

TC100
Tool holder

Proven needle bearing sleeve (patented) with optimal :- ISO 40 or ISO 50.

Minimum-run out in microns, easy maintenance and replacement.
Tool Holder
Swiss made Projector

  • Diameter 110 mm
  • Magnification 20x
  • Stationary and rotating graticule
  • Illumination controlled by the measuring electronics
Swiss Projector
Single Handed operation

Ergonomically designed operating features in conjunction with single-handed pneumatic actuation permit secure traversing of the measuring carriage and use without fatigue. Large hand wheels, ideally positioned, provide infinite fine adjustment of the measuring axes with accuracy to microns.
Easy Operation
Option: Image Processing

E-PRO is the electronic measuring system of the future, it is the intelligent combination of a CMOS camera, a 10.4“ TFT flat screen and a counting module.
E-Pro
Option: Image Processing

T-CAM is the entry model for tool measuring with electronic image processing It is the intelligent combination of a digital CMOS-camera and evaluation electronics with a 6.4˝ TFT-colour monitor.
T-CAM
