Tool Master Series

The Tool Master series is offered as several base models.

These bench top pre-setters are engineered for maximum rigidity and precision. Each Tool Master comes with EyeRay ® software which has been designed to be user friendly and requires no special operator training. All functions of the software can be operated through only six basic icons.



We also provide both servicing and parts for Older Tool Masters. Drop us a line with your model and serial number to get a price.



Tool Master Basic
The Tool Master Basic is the ideal entry level solution. It has all the standard measuring functions for gauging tools.







We have a video on the Tool Master Basic.        Quote
Tool Master Basic
Tool Master Quadra
The Tool Master Quadra is a manual presetter with fast, easy and highly precise measuring. It is the right solution for everyone.







We have a video on the Tool Master Quadra.       Quote
Tool Master Quadra
Tool Master CNC
The Tool Master CNC is available customised with the desired configuration for any CNC and fully automated manufacturing system.








We have a video on the Tool Master CNC.         Quote
Tool Master CNC
Tool Master Wood
The Tool Master Wood is a new unique presetter designed specifically for the wood industry. It has a HSK 63 adapter for aggregates as well as other tools with HSK B/D/F 63.







                              Quote
Tool Master Wood
Tool Master 5
The Tool Master 5 is the top of the range in the Evoset Tool Master group of pre-setters. Tools with a diameter up to 1000mm diameter and height up to 900mm, can be preset.




                              Quote
Tool Master 5
Tool Master One
This is the latest entry level model which combines quality Swiss engineering with an intuitive interface.

The Tool Master One is small and compact meaning it can be used anywhere on your production line or work area. With its high precision and requiring little space, this is will go into any tight place.




                              Quote
Tool Master One
Tool Master One 2D
This is the latest entry level model which combines quality Swiss engineering with an intuitive interface.

The Tool Master One 2D replaces the camera system of the Tool Master One with a dial indicator or comparator and is designed for those tools where a direct physical measurement is preferred to image processing.




                              Quote
Tool Master One 2D

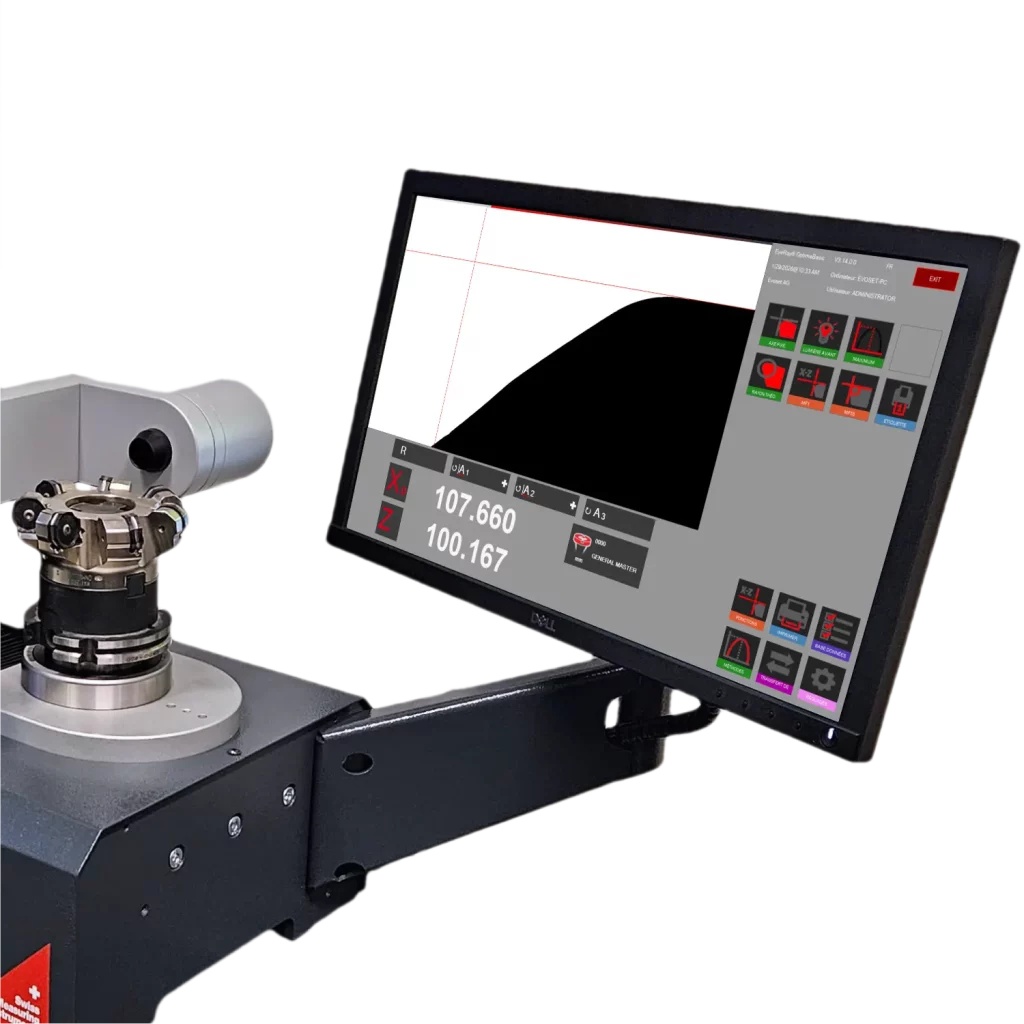

EyeRay©
  • With only six basic icons, Eyeray is easy to use.
  • Self-explanatory buttons
  • Create your own measurement functions
  • Personalised shortcuts allow for quick measurements
  • Fully automated operation
  • Connection interfaces to all machines and manufacturing processes
  • Precise and reproducible measurement results
                              Quote
EyeRay Software

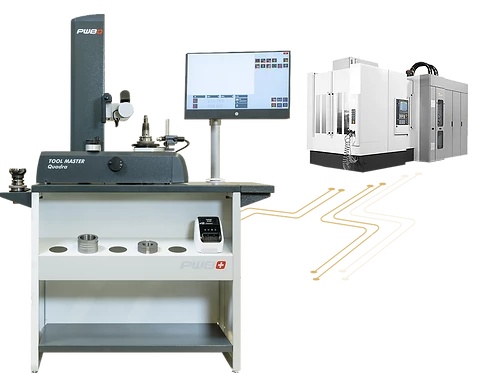

Data Transfer
EyeRay© has a fully featured optional data transfer module.
  • Post Processor – DNC file - Generate output file in various CNC formats
  • Label Printer - Print labels with a QR code or Datamatrix
  • RFID - Manage all your tool data with Balluff RFID tags
  • Application Programming Interface (API) - Create your own solution.

                              Quote
EyeRay Data Transfer
