Eyeray© Software

Eyeray Software

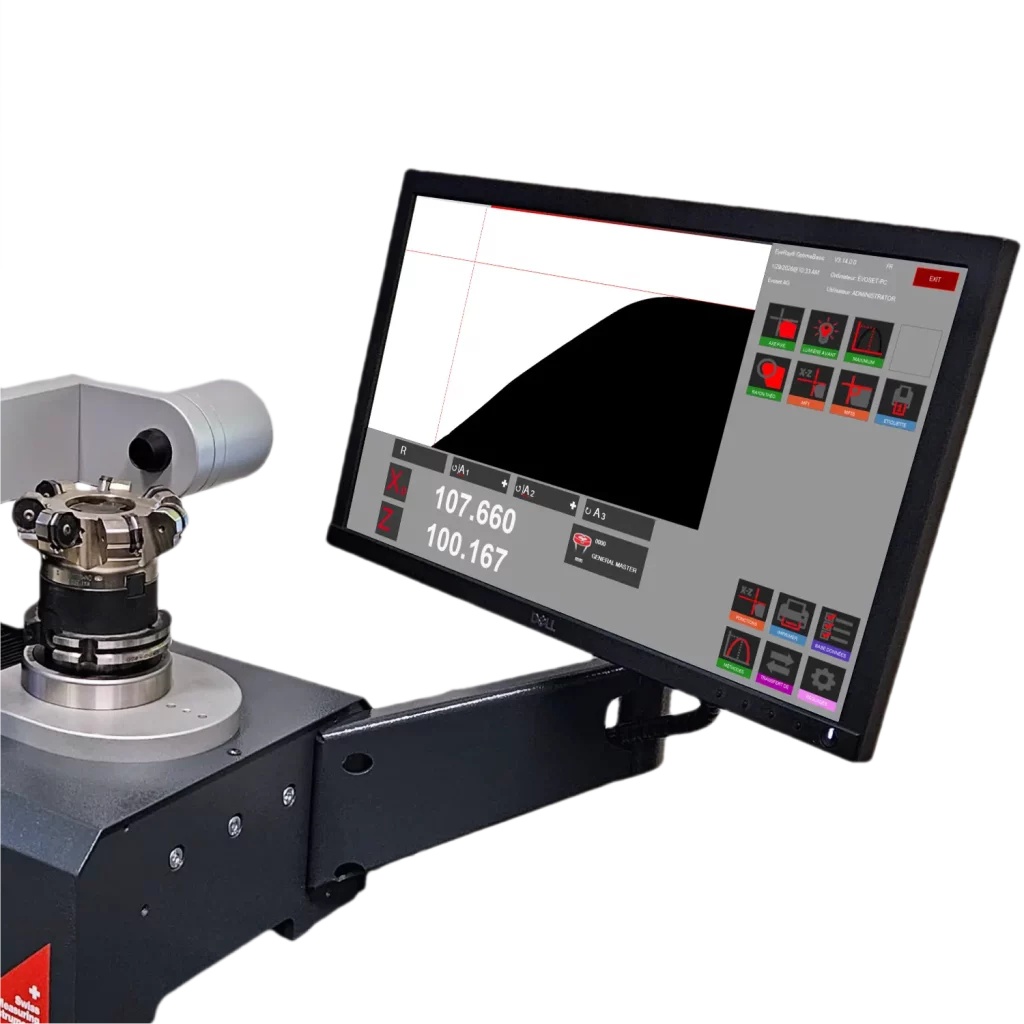

The Eyeray® software is easy to use and requires little to no training. All the Tool Master gauges are installed with Eyeray making the perfect combination of ease of use, consistent results and accurate measurements.

Features With only six basic icons, Eyeray is easy to use. Self-explanatory buttons Create your own measurement functions Personalised shortcuts allow for quick measurements Fully automated operation Connection interfaces to all machines and manufacturing processes Guaranteed process reliability Precise and reproducible measurement results

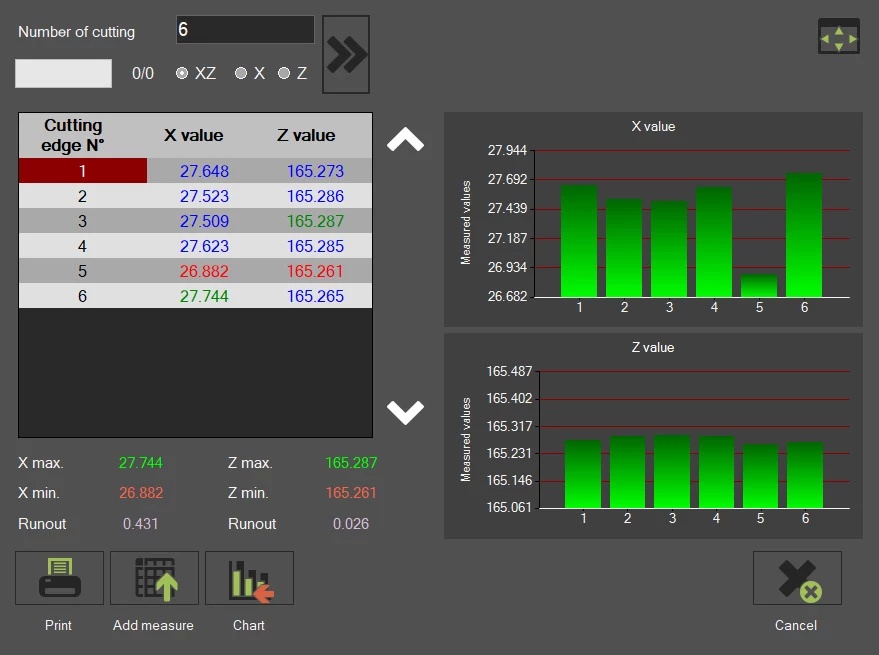

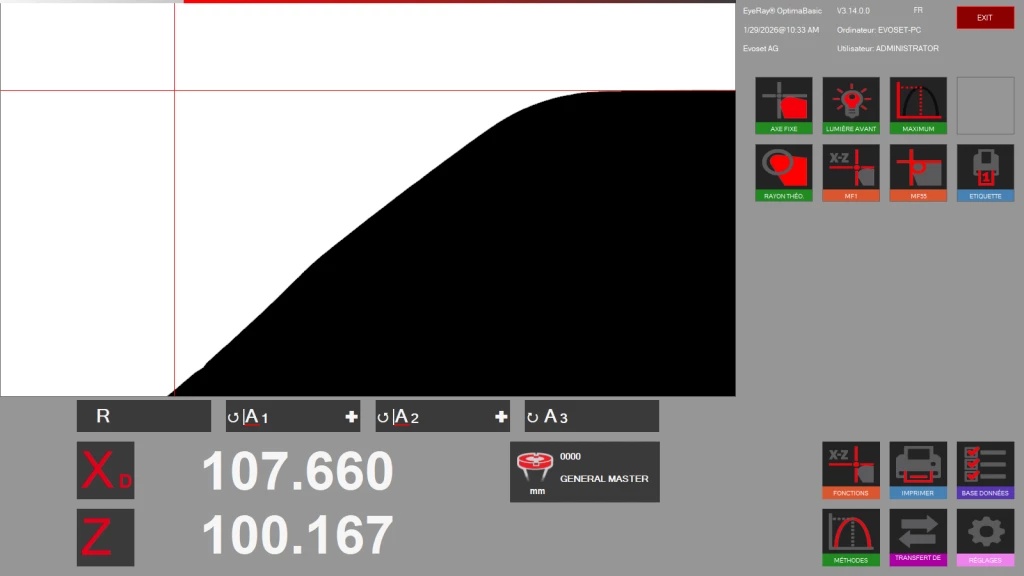

Simple Screens EyeRay© has a clean intuitive interface and requires minimal training. Touch screen interface to setup and operate. Results are displayed clearly and simply. All buttons show what they do. No complicated options for your operators Configurable to your needs. Multiple languages available

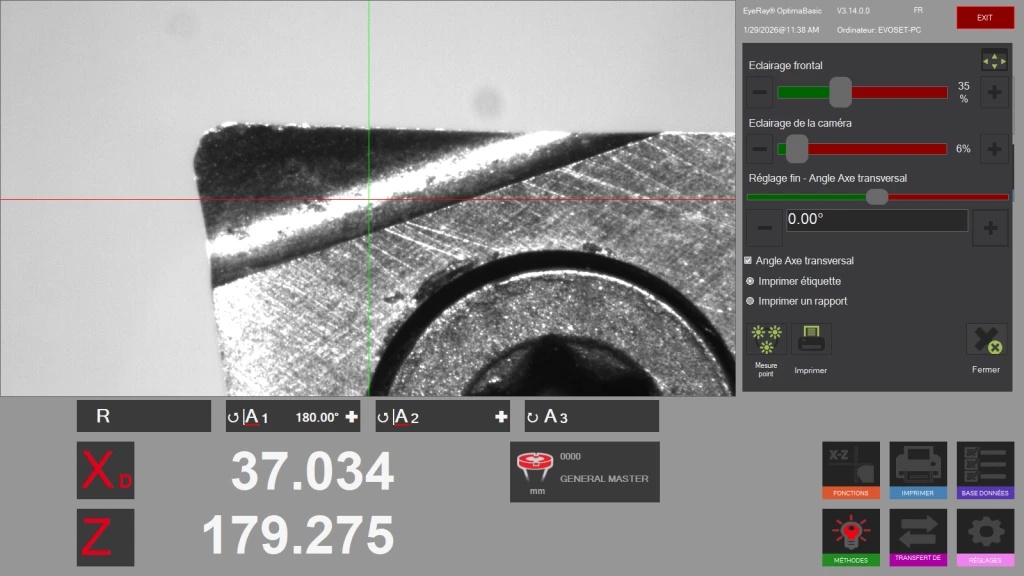

Inspection Camera Examining a tool close up can be as important as measuring it. Move the camera around using the X and Z controls. Rotate the tool as required. Camera magnifies an area of the tool allowing you to check it for chips, scratches and other damage Light provides illumination Easy to enter and exit inspection mode
Data Transfer EyeRay© has a fully featured optional data transfer module. Post Processor – DNC file - Generate output file in various CNC formats Label Printer - Print labels with a QR code or Datamatrix RFID - Manage all your tool data with Balluff RFID tags Application Programming Interface (API) - Create your own solution.
