Dino-Lite

Microscopes

A Perfect Balance of Simplicity and Capability

The Dino-Lite range of microscopes effortlessly bridges the gap between ease of use and advanced functionality, offering features that grow alongside your needs.

With a design philosophy of "Pick up and go", these microscopes make checking the surfaces of mission-critical tooling and equipment faster and more intuitive than ever before.

Dino-Lite
Dino-Lite Edge AM7915MZT

This is our bestselling microscope and is often specifically requested by our customers.

Dino-Lite
Features


Extended Dynamic Range (EDR)

The software accompanying this USB digital microscope enables the automatic creation of highly detailed images, simplifying the examination of complex features.

It is particularly effective for:
  • Shiny or reflective surfaces, where glare might obscure details.
  • Areas with significant lighting variations, ensuring clarity across the entire image.

This advanced capability allows for more precise analysis, even in challenging visual conditions.
Image compensation
Extended Depth of Field (EDOF)

When examining rough surfaces with varying heights, traditional microscopes often require switching between multiple viewpoints, making comparisons cumbersome. With this microscope, that is no longer necessary.

With just a single click, you can create a composite image that keeps the entire surface in focus, regardless of height variations. It is simple, efficient, and ensures you do not miss any critical details.
Extended view
Flexible LED Control (FLC)

This model features 4-quadrant switching capability and 6 levels of luminance adjustability, giving you precise control over the built-in LEDs.

The LEDs are divided into four quadrants, allowing independent adjustment of each quadrant. This flexibility makes the FLC (Flexible Light Control) function ideal for:
  • Side illumination when specific angles need more light.
  • Custom lighting when certain areas of an object require more or less illumination.
This advanced lighting control ensures optimal visibility for detailed analysis. 		Full control over lighting

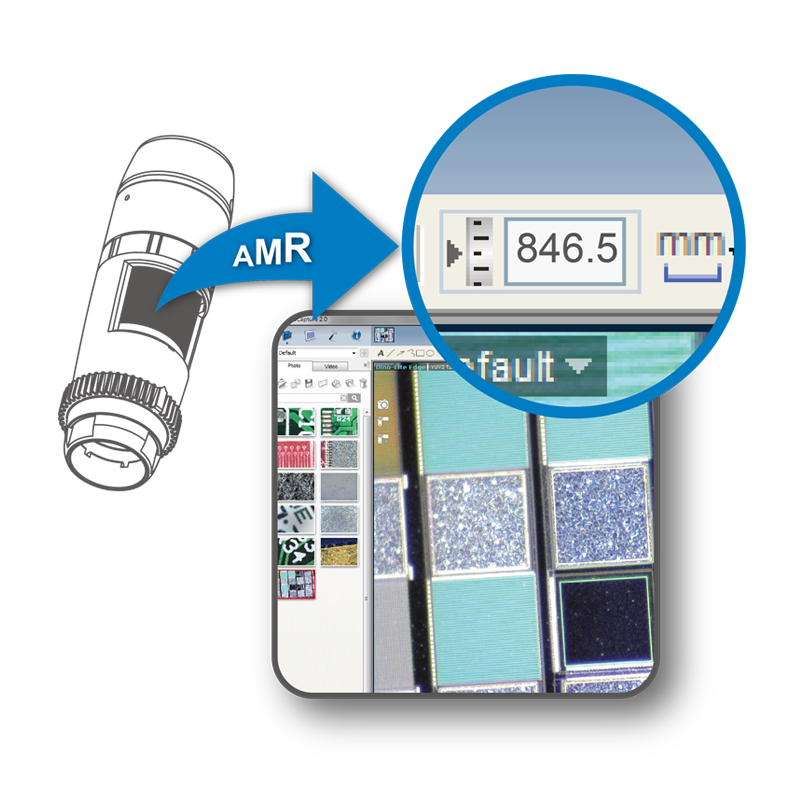

Automatic Magnification Reading (AMR)

The magnification can be seamlessly adjusted through the software, allowing real-time changes while viewing the resulting image. There’s no need to pause, reset, and then measure—enhancing efficiency and ease of use.

The AMR (Automatic Magnification Reading) function further streamlines the process by automatically detecting and displaying the magnification of the Dino-Lite. This information is shown within the software and saved with each captured image.

Key Benefits of AMR:
  • Simplifies measurements: Eliminates manual magnification input for greater ease.
  • Improves accuracy: Ensures precise measurements, even in demanding applications.
  • Essential for precision tasks: Ideal for scenarios requiring calibrated measurements (calibration is performed manually).

AMR is recommended for applications where high precision and reliability are paramount. 		Full control over lighting
Interchangeable Front Caps

Different caps can be clipped onto the front of the lens, making your microscope more adaptable.
  • N3C-C / Close Cap - This cap protects the lens and LED lights from contamination of dust, debris, or moisture.
  • N3C-D / Diffuser Cap - This is the standard cap for normal usage.
  • N3C-D2 / Opal Diffuser Cap - This cap diffuses the LED light.
  • N3C-E / Extended Open Cap - Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.
  • N3C-L / Long Cap - This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.
  • N3C-O / Open Cap - This is the standard cap for normal usage.
  • N3C-S / Sidelight Cap - This cap creates images with more depth and texture.
Flexible setup options
Other Useful Features

  • Adjustable Polarizer: The built-in adjustable polarizer allows you to manually reduce unwanted reflections or glare from object surfaces, enhancing contrast and image clarity.
  • Scroll Lock: Prevents the focus knob from moving after it’s been set, ensuring stability and consistency—ideal for maintaining precise focus during extended use.
  • Robust Housing: Engineered for durability, this microscope is built to withstand rigorous use and deliver reliable performance over time.
