Spindle Taper Cleaners

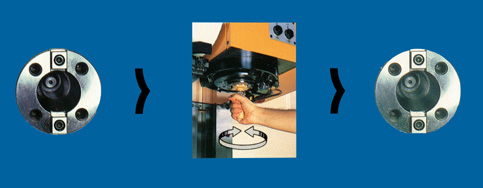

In today's environment of absolute precision, one of the biggest problems with accuracy is at the point of the tool coupling, the slightest ingress of dirt can give you run out, changes in length and generally problems with repeatability. To combat this all Royal gauges can be supplied with taper cleaners and additional cleaners can be supplied for your machine adaptation.

Robust construction with high oil and grease resistance.
Plastic injection moulded core with fluted location for cleaning strips ensures accurate sizing and cleaning efficiency.
Cleaning strips will maintain adhesion to the taper core due to inset location even under scrubbing action.
Cleaning strips at well spaced intervals to remove even large residual particles.

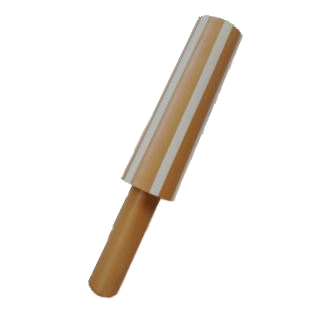

MK Morse Taper - sizes available as standard or short length MK-1 MK-2 MK-2-Short MK-3 MK-3-Short MK-4 MK-5 MK-5-Short MK-6	Part No. 14-021-061 14-021-062 14-021-062S 14-021-063 14-021-063S 14-021-064 14-021-065 14-021-065S 14-021-066

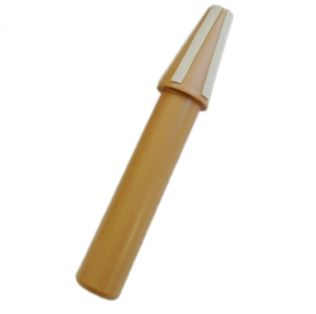

ISO/SK Spindle Cleaner ISO/SK-10 ISO/SK-20 ISO/SK-30 ISO/SK-40 ISO/SK-45 ISO/SK-50	14-021-016 14-021-015 14-021-014 14-021-012 14-021-011 14-021-010

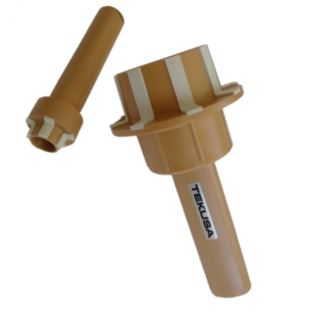

HSK-Form A Spindle Cleaner HSK-25 HSK-32 HSK-40 HSK-50 HSK-63 HSK-63 BDF HSK-80 HSK-100 HSK-125	14-021-007 14-021-001 14-021-002 14-021-003 14-021-004 14-021-009 14-021-005 14-021-006 14-021-008

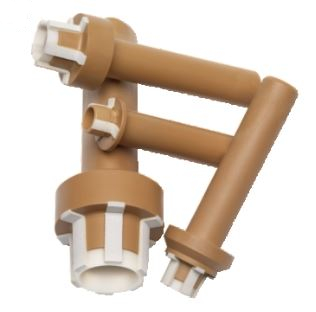

HSK Other Forms Spindle Cleaner HSK-20 E HSK-25 E HSK-32 E HSK-40 E HSK-40 BDF HSK-40 BDF E HSK-50 E HSK-63 E HSK-63 BDF E HSK-80 BDF HSK-80 BDF E HSK-100 E	14-021-100 14-021-101 14-021-102 14-021-103 14-021-110 14-021-111 14-021-104 14-021-105 14-021-112 14-021-113 14-021-114 14-021-106
HSK External cleaner for tool holding fixtures Sizes available with cap or cylindrical handle HSK-40 Cap HSK-40 Handle HSK-50 Cap HSK-50 Handle HSK-63 Cap HSK-63 Handle HSK-80 Cap HSK-80 Handle HSK-100 Cap HSK-100 Handle Also available in Lista tool pot for trolley or bench stand.	14-021-022 14-021-032 14-021-023 14-021-033 14-021-024 14-021-034 14-021-025 14-021-035 14-021-026 14-021-036
Cylindrical cleaner type TKC (one-part) TKC ⌀ 6mm TKC ⌀ 8mm TKC ⌀ 10mm TKC ⌀ 12mm TKC ⌀ 14mm	14-021-081 14-021-082 14-021-083 14-021-084 14-021-085
Cylindrical cleaner type TKC (two-part) TKC ⌀ 13mm (special) TKC ⌀ 15mm (special) TKC ⌀ 16mm TKC ⌀ 18mm TKC ⌀ 20mm TKC ⌀ 25mm TKC ⌀ 32mm TKC ⌀ 40mm TKC ⌀ 42mm	14-021-093 14-021-094 14-021-086 14-021-087 14-021-088 14-021-089 14-021-090 14-021-091 14-021-092
Coromant Capto holder fixtures C3 C4 C5 C6 C8	14-021-071 14-021-072 14-021-073 14-021-074 14-021-075
ER Collet chuck spindle cleaner ER-11 ER-16 ER-20 ER-25 ER-32	14-021-120 14-021-121 14-021-122 14-021-123 14-021-124
ISO External cleaner, taper and flange cleaner SK/ISO-30 SK/ISO-40	14-021-014 14-021-012
Cylindrical cleaner (for hydro or heat shrink tool holders) ⌀ 6mm ⌀ 7mm ⌀ 8mm ⌀ 9mm ⌀ 10mm ⌀ 11mm ⌀ 12mm	14-021-140 14-021-141 14-021-142 14-021-143 14-021-144 14-021-145 14-021-146
Spindle cleaner for Mega Micro collet chucks (MEGA-S, MEGA-E, MEGA-N and MEGA-NBS MEGA3S / SC-NBC3S MEGA4S / SC-NBC4S MEGA6S / SC-NBC6S MEGA6E / SC-MEC6 MEGA8E / SC-MEC8 MEGA10E / SC-MEC10 MEGA13E / SC-MEC13 MEGA6N / SC-NBC6 / NBS6 MEGA8N / SC-NBC8 / NBS8 MEGA10N / SC-NBC10 / NBS10 MEGA13N / SC-NBC13 / NBS13 MEGA16N / SC-NBC16 / NBS16 MEGA20N / SC-NBC20 / NBS20	14-021-150 14-021-151 14-021-152 14-021-153 14-021-154 14-021-155 14-021-156 14-021-157 14-021-158 14-021-159 14-021-160 14-021-161 14-021-162
Specials Bespoke cleaners are available. Please contact us about any special sizes not covered here
