raaco Compact

Features

Ergonomic handle which lies flush with the top of case when not in use
Small drawers at the base of the tool box allow you to store items which can then be accessed without having to open the case.
Removeable trays both in the base and in the main compartment. Can be sub-divided and arranged using standard inserts.
Designed to also be useable as a stool. Please note : It is not recommended to stand on the case if castors are fitted.
Tool box can not only be closed, but also locked and if required, stacked.
Space saving design means that the lid can be fully opened and laid against the sides.

Compact 15 Includes dividers for arranging the tote tray to fit your tools. Contains 10 dividers Depth: 215.0 mm / 8.5 inches Width: 426.0 mm / 16.8 inches Height: 170.0 mm / 6.7 inches Weight: 1.298 kg / 2.860 lbs Max Recommended Weight: 20.00 kg / 44.09 lbs Made of polypropylene raaco Blue Item No.: 136563 EAN: 5733439136563
Compact 20 Includes assorted inserts so that compartments can be arranged according to your requirements. Contains 6 inserts Depth: 239.0 mm / 9.5 inches Width: 474.0 mm / 18.7 inches Height: 190.0 mm / 7.5 inches Weight: 1.658 kg / 3.655 lbs Max Recommended Weight: 30.00 kg / 66.14 lbs Made of polypropylene raaco Blue Item No.: 136570 EAN: 5733439136570
Compact 27 Includes assorted inserts and dividers. Compartments can be arranged according to your requirements. Contains 6 inserts Depth: 239.0 mm / 9.5 inches Width: 474.0 mm / 18.7 inches Height: 248.0 mm / 9.8 inches Weight: 2.328 kg / 5.131 lbs Max Recommended Weight: 30.00 kg / 66.14 lbs Made of polypropylene raaco Blue 2 drawers for small items Item No.: 136587 EAN: 5733439136587
Compact 37 Includes assorted inserts and dividers. Contains 7 inserts Depth: 296.0 mm / 11.7 inches Width: 540.0 mm / 21.3 inches Height: 230.0 mm / 9.1 inches Weight: 3.270 kg / 7.209 lbs Max Recommended Weight: 40.00 kg / 88.184 lbs Made of polypropylene raaco Blue Castors or a carrying strap can be fitted Item No.: 136594 EAN: 5733439136594
Compact 47 Includes assorted inserts and dividers. Contains 6 inserts Depth: 296.0 mm / 11.7 inches Width: 540.0 mm / 21.3 inches Height: 292.0 mm / 11.5 inches Weight: 4.190 kg / 9.237 lbs Max Recommended Weight: 40.00 kg / 88.18 lbs Made of polypropylene raaco Blue 2 drawers for small items Castors or a carrying strap can be fitted Item No.: 136600 EAN: 5733439136600
Compact 50 Includes assorted inserts and divider. Compartments can be arranged according to your requirements. Contains 10 inserts Depth: 311.0 mm / 12.3 inches Width: 621.0 mm / 24.5 inches Height: 260.0 mm / 10.3 inches Weight: 4.020 kg / 8.863 lbs Max Recommended Weight: 50.00 kg / 110.23 lbs Made of polypropylene raaco Blue Castors or a carrying strap can be fitted Item No.: 136617 EAN: 5733439136617
Compact 62 Includes assorted inserts and dividers. Contains 10 inserts Depth: 311.0 mm / 12.3 inches Width: 621.0 mm / 24.5 inches Height: 322.0 mm / 12.7 inches Weight: 6.475 kg / 14.275 lbs Max Recommended Weight: 50.00 kg / 110.23 lbs Made of polypropylene raaco Blue 4 drawers for small items Castors or a carrying strap can be fitted Item No.: 136624 EAN: 5733439136624
Accessories Toolboxes can be fitted with various accessories to optimise your gear and simplify moving it to where it is needed. Available extras are :- Carrying Strap Castors Extra inserts
Carrying Strap This is an adjustable strap which can be fitted to the Compact 37, 47, 50 and 62. Max Recommended Weight: 50.00 kg / 110.23 lbs Made of polycarbonate Black Item No.: 114059 EAN: 5733439114059
Castors 4 heavy duty rubber castors for the Compact 37, 47, 50, 62 and CarryLite Transporter. 2 lockable castors and 2 normal Very easy to install Designed for multiple surfaces Black Item No.: 113656 EAN: 5733439113656
Inserts for the Compact toolboxes Features Transparent Come with a tray Made of polypropylene These can also be used in :- Assorter 55 Boxxser 55 CarryLite 55 Available Sizes
Insert 55 A9-1 Tray Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 16 inserts Item No.: 105347 EAN: 5733439105347
Insert 55 A9-2 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 8 inserts Item No.: 136419 EAN: 5733439136419
Insert 55 A9-3 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 6 inserts Item No.: 136426 EAN: 5733439136426
Insert 55 A9-4 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 4 inserts Item No.: 136433 EAN: 5733439136433
Insert 55 A8-1 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 8 inserts Item No.: 109888 EAN: 5733439109888
Insert 55 A8-2 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 4 inserts Item No.: 136457 EAN: 5733439136457
Insert 55 A8-3 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 3 inserts Item No.: 136464 EAN: 5733439136464

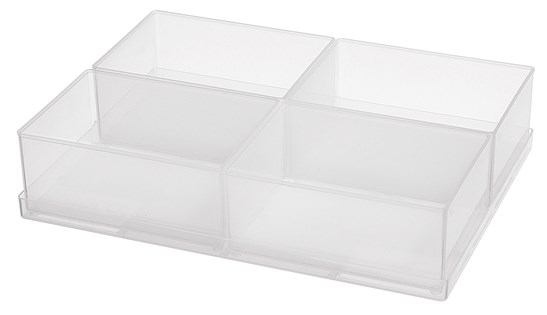

Insert 55 A7-1 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 4 inserts Item No.: 136471 EAN: 5733439136471
Insert 55 A7-2 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 2 inserts Item No.: 136488 EAN: 5733439136488
Insert 55 A6-1 Depth: 160.0 mm / 6.3 inches Width: 220.0 mm / 8.7 inches Height: 47.0 mm / 1.9 inches Qty: 2 inserts Item No.: 136495 EAN: 5733439136495
Layouts Compact Toolbox Layouts Each type of insert takes up a certain number of sections in the tool tray or drawer
Compact 20 Sections in Tray : 28
Compact 27 Sections in Tray : 28 Sections in Drawer : 12 Drawers : 2
Compact 37 Sections in Tray : 40
Compact 47 Sections in Tray : 32 Sections in Drawer : 15 Drawers : 2
Compact 50 Sections in Tray : 48
Compact 62 Sections in Tray : 48 Sections in Drawer : 20 Drawers : 4
