raaco ESD Product Range

What is Electrostatic Discharge (ESD)?

Electrostatic discharge (ESD) refers to the sudden flow of electrical energy between two objects with differing electrical charges when they come into contact or close proximity.

Certain components, such as computer memory, are highly sensitive to electrical currents. Accidental grounding or exposure to an unintended electrical discharge can damage these components, posing risks to devices across various industries

Many of us encounter ESD in everyday life. For instance, you might feel a small shock when touching a metal doorknob after walking on a carpet. On a much larger scale, lightning exemplifies ESD. The immense charge disparity between a cloud and the ground results in a powerful discharge, even without direct contact.

Features

Full protection from residual electrostatic charges
Manufactured from plastics that contains carbon fibres making them permanently antistatic
No reduction of the protection over time since the shielding is built into the materials used
Designed for intensive usage. These products will continue to guard today, tomorrow, ten years from now.
Raacostat complies with EN 61340-5-1:2024 and other equivalent international standards.
Surface resistance of 1x10^4 - 1x10^11 Ω
Combines seamlessly with other raaco storage boxes and tool panels
A complete range of products for any situation.

Products

Cabinets - When space is at a premium, these allow you to efficiently store away your small components whilst also making them easy to find
Bins - Create your own layout layouts based on your requirement.
Assorter - These lightweight compartment boxes have been specifically designed for practical sorting. All parts can be replaced and reused.
Toolboxes - On the go solution when replacing or working on ESD sensitive equipment.
Accessories - Extras allow you to design your perfect set up.

ESD Cabinet 1260-00 Cabinet with type 150-00 drawers Comes with 60 drawers Each drawer can be divided into 2 compartments (not included - see extras) ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 552.0 mm / 21.8 inches Weight: 4.775 kg / 10.527 lbs Carriage load: 40.00 kg / 88.18 lbs Quantity: 1 Colour: Black Accessories Item No.: 102513 EAN: 5733439102513
ESD Cabinet 1248-01 Cabinet with type 150-01 drawers Comes with 48 drawers Each drawer can be divided into 8 compartments (not included - see extras) ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 552.0 mm / 21.8 inches Weight: 4.775 kg / 10.527 lbs Carriage load: 40.00 kg / 88.18 lbs Quantity: 1 Colour: Black Accessories Item No.: 102520 EAN: 5733439102520
ESD Cabinet 1224-02 Cabinet with type 150-02 drawers Comes with 24 drawers Each drawer can be divided into 3 compartments (not included - see extras) ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 552.0 mm / 21.8 inches Weight: 3.993 kg / 8.803 lbs Carriage load: 26.40 kg / 58.20 lbs Quantity: 1 Colour: Black Polypropylene drawers Dim (HxWxD, mm): 552 x 306 x 150 Carriage load (kg): 26.40 Quantity: 1 Accessories Item No.: 102537 EAN: 5733439102537
ESD Cabinet Turntable 1200 Can be fitted with any 12 combination of the ESD 1200 series cabinets above. Cabinet 1260-00 Cabinet 1248-01 Cabinet 1224-02 Please note that cabinets are not included Includes earth wire Galvanized steel Depth: 0.0 mm / 0.0 inches Width: 680.0 mm / 26.8 inches Height: 1760.0 mm / 69.3 inches Weight: 12.135 kg / 26.753 lbs Carriage load: 480.00 kg / 1058.22 lbs Colour: Black Quantity: 1 Item No.: 102568 EAN: 5733439102568
ESD Cabinet 945-00 Cabinet with type 150-00 drawers Comes with 45 drawers Each drawer can be divided into 2 compartments (not included - see extras) ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 417.0 mm / 16.5 inches Weight: 3.733 kg / 8.230 lbs Carriage load: 30.00 kg / 66.14 lbs Quantity: 1 Colour: Black Polypropylene drawers Dim (HxWxD, mm): 552 x 306 x 150 Carriage load (kg): 26.40 Quantity: 1 Accessories Item No.: 118231 EAN: 5733439118231
ESD Cabinet 936-01 Cabinet with type 150-01 drawers Comes with 36 drawers ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 417.0 mm / 16.5 inches Weight: 3.653 kg / 8.053 lbs Carriage load: 30.00 kg / 66.14 lbs Quantity: 1 Colour: Black Quantity: 1 Accessories Item No.: 109246 EAN: 5733439109246
ESD Cabinet 918-02 Cabinet with type 150-02 drawers Comes with 18 drawers Each drawer can be divided into 3 compartments (not included - see extras) ESD Polypropylene drawers and galvanized steel Depth: 150.0 mm / 6.0 inches Width: 306.0 mm / 12.1 inches Height: 417.0 mm / 16.5 inches Weight: 3.163 kg / 6.973 lbs Carriage load: 19.80 kg / 43.65 lbs Quantity: 1 Colour: Black Accessories Item No.: 102544 EAN: 5733439102544
ESD Cabinet Turntable 900 Can be fitted with any 12 combination of the ESD 900 series cabinets above. Cabinet 945-00 Cabinet 936-01 Cabinet 918-02 Please note that cabinets are not included Includes earth wire Galvanized steel Depth: 0.0 mm / 0.0 inches Width: 680.0 mm / 26.8 inches Height: 1600.0 mm / 63.0 inches Weight: 16.535 kg / 36.453 lbs Carriage load: 480.00 kg / 1058.22 lbs Colour: Black Quantity: 1 Item No.: 102964 EAN: 5733439102964
ESD Cabinet 250/6-3 Cabinet with type 250-03 drawers Comes with 6 drawers Each drawer can be further sub-divided using inserts (extra accessory) ESD Polypropylene drawers and galvanized steel Depth: 255.0 mm / 10.1 inches Width: 357.0 mm / 14.1 inches Height: 435.0 mm / 17.2 inches Weight: 3.163 kg / 6.973 lbs Carriage load: 37.50 kg / 82.67 lbs Quantity: 1 Colour: Black Includes earth wire Accessories Item No.: 103725 EAN: 5733439103725
ESD Cabinet Turntable 250 Can be fitted with any 12 combination of the 250 series cabinets above. Cabinet 250/24-1 Cabinet 250/8-2 Cabinet 250/6-3 Please note that cabinets are not included Includes earth wire Galvanized steel Depth: 0.0 mm / 0.0 inches Width: 880.0 mm / 34.7 inches Height: 1600.0 mm / 63.0 inches Weight: 20.815 kg / 45.889 lbs Carriage load: 480.00 kg / 1058.22 lbs Colour: Black Quantity: 1 Item No.: 103749 EAN: 5733439103749
ESD Bin 2-80 Covers a total of 2 slots on the bin wall panel and carousel ESD Polypropylene drawers and galvanized steel Depth: 133.0 mm / 5.3 inches Width: 125.0 mm / 5.0 inches Height: 50.0 mm / 2.0 inches Weight: 0.052 kg / 0.115 lbs Carriage load: 5.00 kg / 11.02 lbs Quantity: 48 Colour: Black Item No.: 109277 EAN: 5733439109277
ESD Bin 3-160 Covers a total of 3 slots on the bin wall panel and carousel ESD Polypropylene drawers and galvanized steel Depth: 173.0 mm / 6.9 inches Width: 125.0 mm / 5.0 inches Height: 75.0 mm / 3.0 inches Weight: 0.104 kg / 0.229 lbs Carriage load: 5.00 kg / 11.02 lbs Quantity: 32 Colour: Black Item No.: 109291 EAN: 5733439109291
ESD Bin 4-280 Covers a total of 4 slots on the bin wall panel and carousel ESD Polypropylene drawers and galvanized steel Depth: 228.0 mm / 9.0 inches Width: 125.0 mm / 5.0 inches Height: 101.0 mm / 4.0 inches Weight: 0.180 kg / 0.397 lbs Carriage load: 5.00 kg / 11.02 lbs Quantity: 24 Colour: Black Item No.: 109314 EAN: 5733439109314

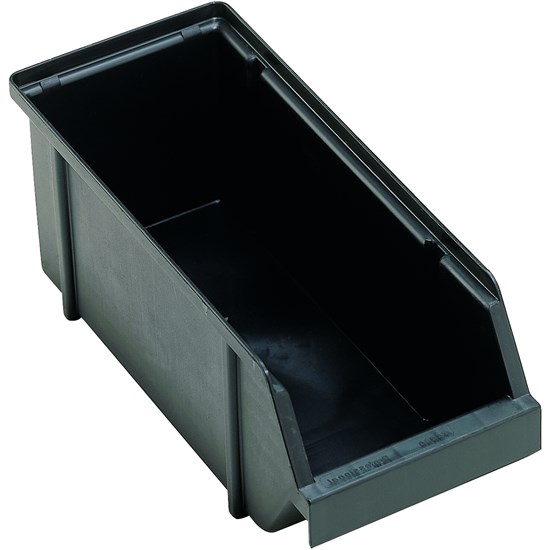

ESD Bin 5-460 Covers a total of 5 slots on the bin wall panel and carousel ESD Polypropylene drawers and galvanized steel Depth: 300.0 mm / 11.9 inches Width: 125.0 mm / 5.0 inches Height: 126.0 mm / 5.0 inches Weight: 0.235 kg / 0.518 lbs Carriage load: 10.00 kg / 22.05 lbs Quantity: 16 Colour: Black Item No.: 113021 EAN: 5733439113021
ESD Bin Wall Panel Can be fitted with any combination of the ESD bins above. Bin 2-80 Bin 3-160 Bin 4-280 Bin 5-460 Please note that bins are not included Includes earth wire Galvanized steel Depth: 11.0 mm / 0.5 inches Width: 520.0 mm / 20.5 inches Height: 440.0 mm / 17.4 inches Weight: 1.313 kg / 2.895 lbs Colour: Black Quantity: 6 Item No.: 106573 EAN: 5733439106573

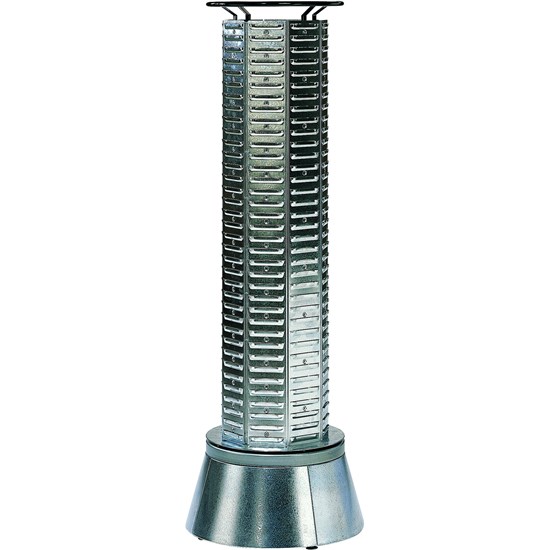

ESD Cabinet Bin Carousel Can be fitted with any combination of the ESD bins above. There are 288 slots. Bin 2-80 Bin 3-160 Bin 4-280 Bin 5-460 Please note that bins are not included Includes earth wire Galvanized steel Depth: 0.0 mm / 0.0 inches Width: 0.0 mm / 0.0 inches Height: 1600.0 mm / 63.0 inches Weight: 24.255 kg / 53.473 lbs Carriage load: 450.00 kg / 992.08 lbs Colour: Black Quantity: 1 Item No.: 114158 EAN: 5733439114158
ESD Assorter 55 4x8-0 This is an empty case which can be set up to suit your specific needs such as an ESD foam insert or a combination of containers. Empty case Lid has U-profiles to make sure that the contents stay in place. Fitted with sliding locks. Dimensions (HxWxD): 57 x 338 x 261 mm Recommended Weight: 5 Kg Made of ESD polypropylene Colour: Black Accessories Item No.: 104203 EAN: 5733439104203
ESD Assorter 4-15 15 fixed compartments of various sizes. Lid has U-profiles to make sure that the contents stay in place. Fitted with sliding locks. Dimensions (HxWxD): 57 x 338 x 260 mm Recommended Weight: 5 Kg Made of ESD polypropylene Colour: Black Item No.: 104111 EAN: 5733439104111
ESD Assorter 4-32 32 fixed compartments. Lid has U-profiles to make sure that the contents stay in place. Fitted with sliding locks. Dimensions (HxWxD): 57 x 338 x 260 mm Recommended Weight: 5 Kg Made of ESD polypropylene Colour: Black Item No.: 104173 EAN: 5733439104173
ESD Insert 55 A9-1 Dimensions (HxWxD): 47 x 39 x 55 mm Qty: 96 Made of ESD polypropylene Colour: Black Item No.: 104555 EAN: 5733439104555
ESD Insert 55 A8-1 Dimensions (HxWxD): 47 x 55 x 79 mm Qty: 48 Item No.: 104630 EAN: 5733439104630
ESD Insert 55 A7-1 Dimensions (HxWxD): 47 x 79 x 109 mm Qty: 24 Item No.: 125109 EAN: 5733439125109
ESD Insert 27 A71 Sections: 1 Dimensions (HxWxD): 24 x 79 x 109 mm Qty: 21 Item No.: 118187 EAN: 5733439118187
ESD Insert 27 A75 Sections: 5 Dimensions (HxWxD): 24 x 79 x 109 mm Qty: 21 Item No.: 118200 EAN: 5733439118200
ESD Insert 55 A9-1 with tray Dimensions (HxWxD): 47 x 39 x 55 mm Qty: 16 Item No.: 142007 EAN: 5733439142007
ESD Insert 55 A8-1 with tray Dimensions (HxWxD): 47 x 55 x 79 mm Qty: 8 Item No.: 142014 EAN: 5733439142014
ESD Compact 15 Toolbox with handle including a removable tote tray. Depth: 215.0 mm / 8.5 inches Width: 426.0 mm / 16.8 inches Height: 170.0 mm / 6.7 inches Weight: 1.350 kg / 2.976 lbs Max Recommended Weight: 20.00 kg / 44.09 lbs Made of ESD polypropylene Black Item No.: 104432 EAN: 5733439104432
Storage Cabinet Accessories Drawer 150-00 Dividers 150-00 Drawer 150-01 Dividers 150-01 Drawer 150-02 Dividers 150-02 Inserts
ESD Drawer 150-00 This drawer or bin can be used in the :- ESD Cabinet 1260-00 ESD Cabinet 945-00 Dim (HxWxD, mm): 41 x 55 x 153 Carriage load (kg): 0.50 Made of ESD polypropylene Black Quantity: 120 Item No.: 112260 EAN: 5733439112260
ESD Divider 150-00 These black partitions enable you to separate different types of related items in a single bin. Use in the drawer-150-00 containers Dim (HxWxD, mm): 32 x 52 x 1.6 Made of ESD polypropylene Black Quantity: 60 Item No.: 118248 EAN: 5733439118248
Label 150-00 Externally identify the contents of your bins. The labels are protected with an easy clean plastic cover. For use on the front of the drawer-150-00 containers Dim (HxWxD, mm): 10 x 52 x 1 White Quantity: 60 Item No.: 109024 EAN: 5733439109024
ESD Drawer 150-01 This drawer or bin can be used in the :- ESD Cabinet 1248-01 ESD Cabinet 936-01 Dim (HxWxD, mm): 41 x 67 x 153 Carriage load (kg): 0.80 Made of ESD polypropylene Black Quantity: 96 Item No.: 105910 EAN: 5733439105910
ESD Divider 150-01 These black partitions enable you to separate different types of related items in a single bin. Use in the drawer-150-01 containers Dim (HxWxD, mm): 31 x 64 x 1.4 Made of ESD polypropylene Black Quantity: 48 Item No.: 103985 EAN: 5733439103985
Label 150-01 Externally identify the contents of your bins. The labels are protected with an easy clean plastic cover. For use on the front of the drawer-150-01 containers Dim (HxWxD, mm): 10 x 64 x 1 White Quantity: 48 Item No.: c EAN: 5733439107761
ESD Drawer 150-02 This drawer or bin can be used in the :- ESD Cabinet 1224-02 ESD Cabinet 918-02 Dim (HxWxD, mm): 64 x 154 x 91 Carriage load (kg): 1.00 Made of ESD polypropylene Black Quantity: 48 Item No.: 107853 EAN: 5733439107853
ESD Divider 150-02 These black partitions enable you to separate different types of related items in a single bin. Use in the drawer-150-02 containers Dim (HxWxD, mm): 49 x 87 x 2 Made of ESD polypropylene Black Quantity: 24 Item No.: 113298 EAN: 5733439113298
Label 150-02 Externally identify the contents of your bins. The labels are protected with an easy clean plastic cover. For use on the front of the drawer-150-02 containers Dim (HxWxD, mm): 18 x 87 x 1 White Quantity: 24 Item No.: 107778 EAN: 5733439107778
ESD Drawer 250-03 This drawer or bin can be used in the :- ESD Cabinet 250 / 6-3 Dim (HxWxD, mm): 57 x 320 x 240 Carriage load (kg): 3.10 Made of ESD polypropylene Black Quantity: 7 Item No.: 111775 EAN: 5733439111775
Label 250-03 Externally identify the contents of your bins. The labels are protected with an easy clean plastic cover. For use on the front of the drawer-250-03 containers Dim (HxWxD, mm): 15 x 315 x 1 White Quantity: 6 Item No.: 107822 EAN: 5733439107822
