raaco Utility Carts

These were originally developed for the aerospace industry with the utility cart range designed to simplify the transportation and storage of materials and tools. It can be easily integrated into existing manufacturing, maintenance and materials management processes.

The compact, lightweight and robust aluminium construction provides a versatile platform and has a range of options to match your requirements.

The range is fully compatible with core raaco products, including the CarryLite organizers, and will provide a superior alternative to traditional utility cart solutions.

Get an industry tested standard model or design your own. Choose from :

Drawers - either shallow or deep
Shelves
Slots for your CarryLite 80s
Slots for your CarryLite 55s
Additional items such as bins and tool holders.

CarryLite The utility carts are designed for CarryLite 5x10 organizers. Stepped front edge to prevent the CarryLite from rattling or falling out during transportation. Highly durable and impact-resistant, CarryLite boxes are made from high-grade polycarbonate and polypropylene. Just what you need for the for the harshest working environments. Configurable with the range of raaco inserts, and with transparent lids, CarryLites are the ideal solution for organising and transporting tools and components. Your existing CarryLite 5x10 cases will fit straight in. Optional Extras include: Sandwich double lid which allows you to display what is in the CarryLite case Location management system (LMS) which is used with the inserts to design your own layouts. Fluorescent material variants to help with FOD (Foreign Object Detection)

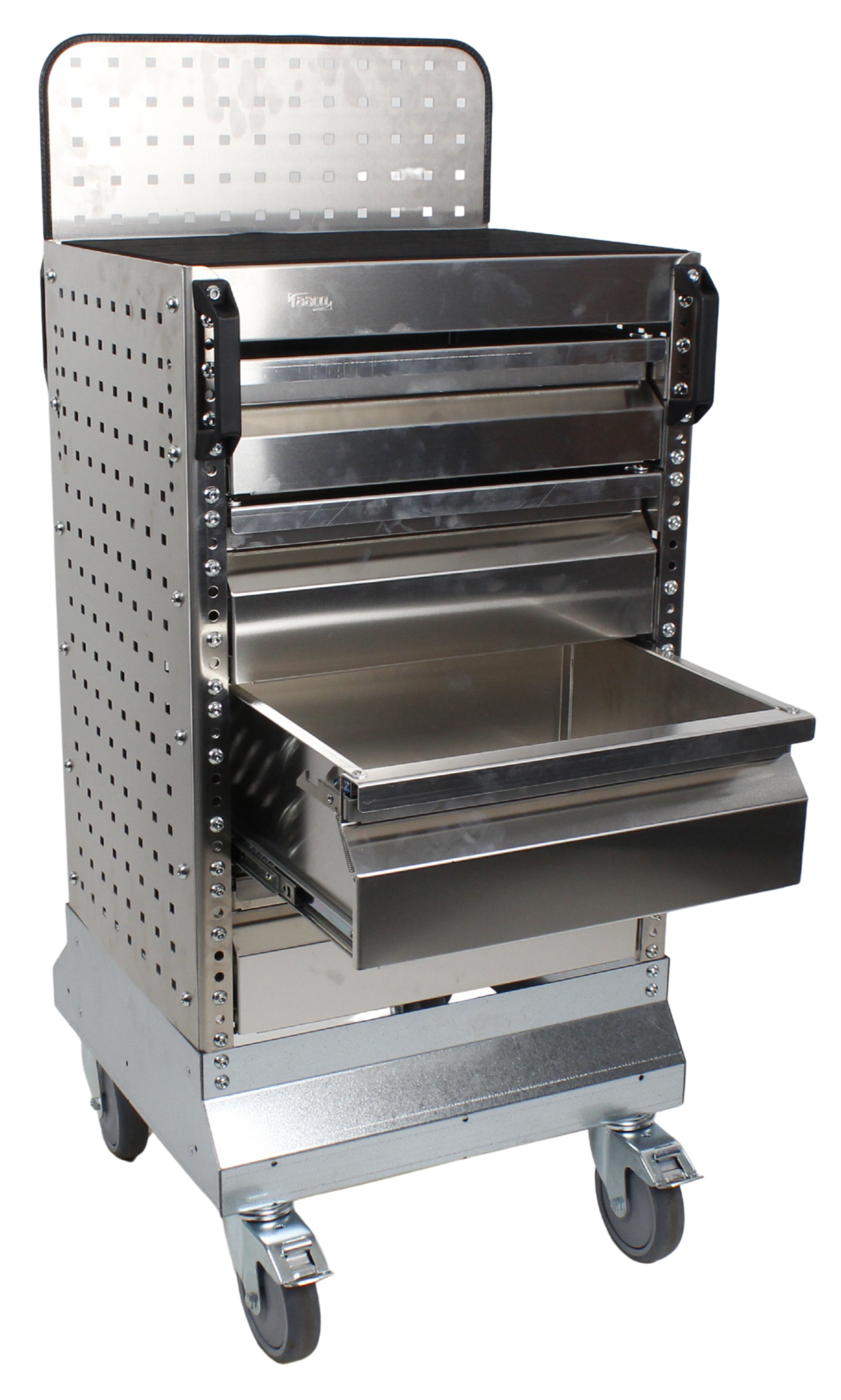

Aluminium Drawers Available as shallow (110mm) or deep (150mm). Recessed handle release mechanism so that the drawers will lock into place when moving the trolley. Drawers open fully and are 375mm x 330mm Maximum weight per drawer is a generous 20 kg

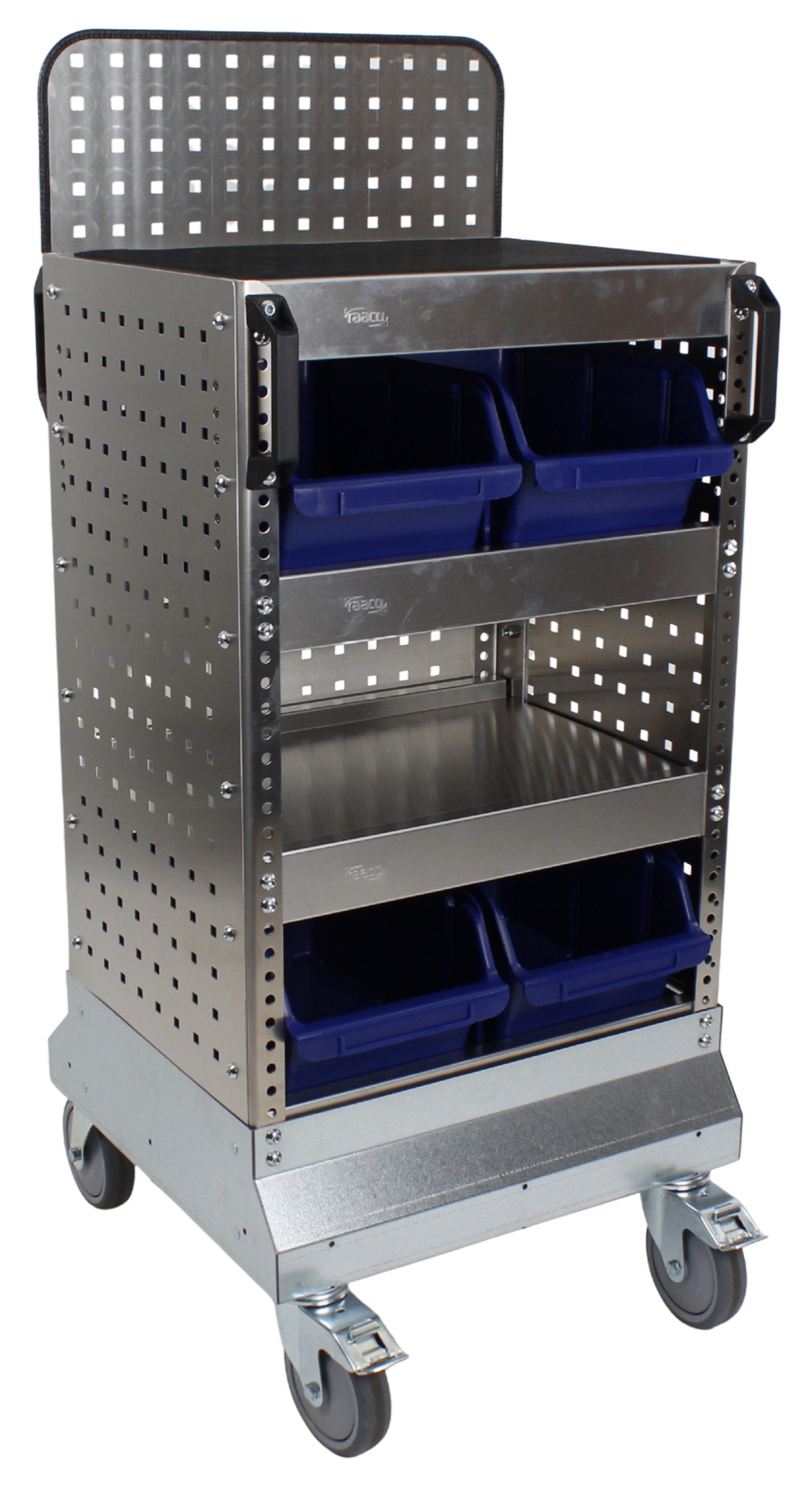

Aluminium Shelves Stepped front edge to prevent contents from spilling. Width of 425mm. Load capacity of 20kg. Designed to fit either the raaco 4-1100 bin units or the 6-1100.

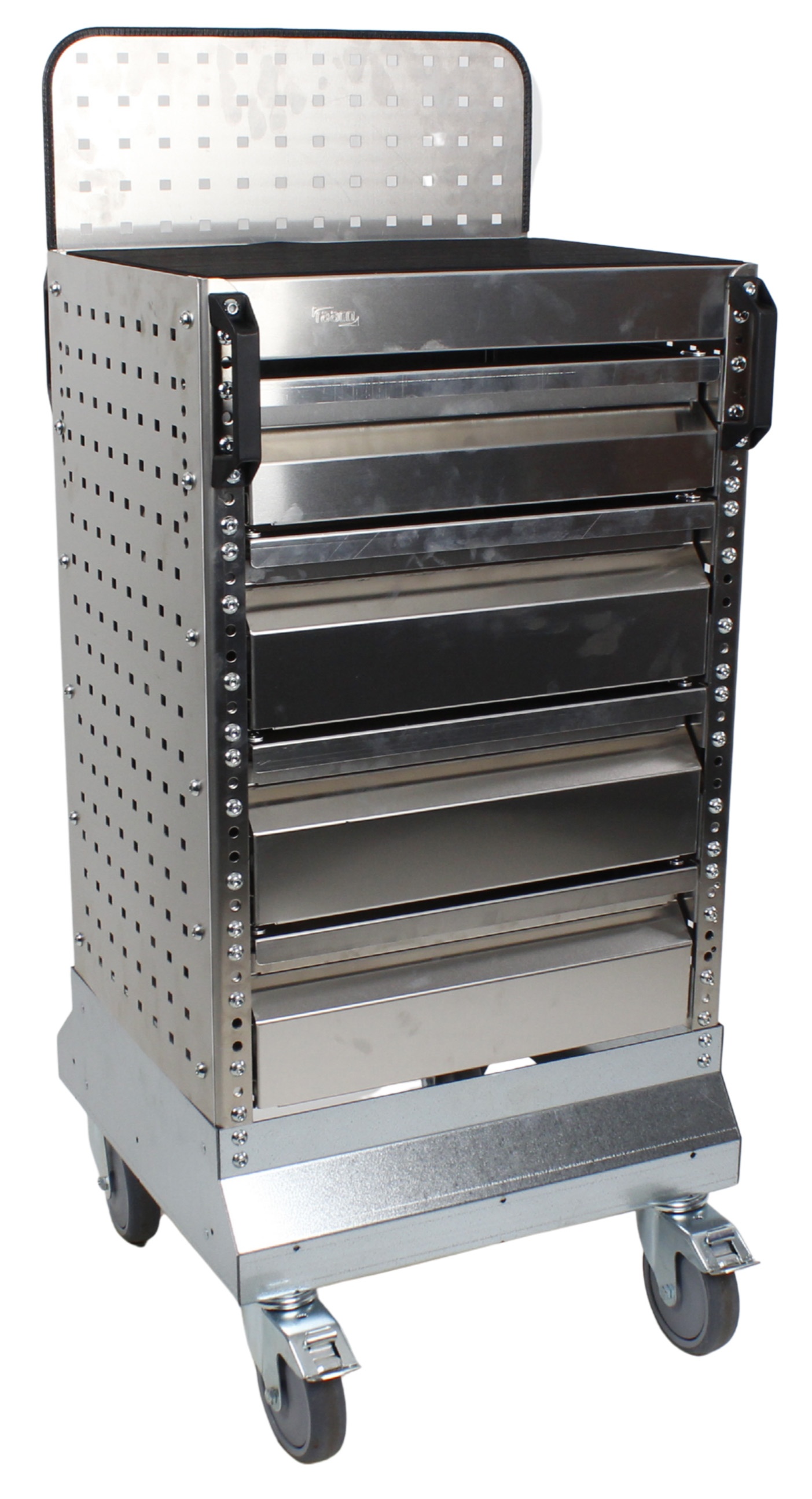

Workshop Cart 4 Drawer This compact roller cabinet is ideal for facilities which require a flexible mobile platform to work from due to limited space. 1 shallow drawer, (110mm) with recessed handle release mechanism. 3 deep drawers (150mm) with recessed handle release mechanism. Perforated panels with Super Clip tool wall accessories for easy access. Work surface with removable rubber mat. 4 low resistance castors, 2 with brakes. Each corner has a handle, just pull or push using the closest ones. Dimensions (HxWxD): 967 (1157 including back panel) x 495 x 480 mm Unloaded Weight : 29 kg Max Recommended Weight : 125 Kg Item No.: 190428 EAN: 5733439190428

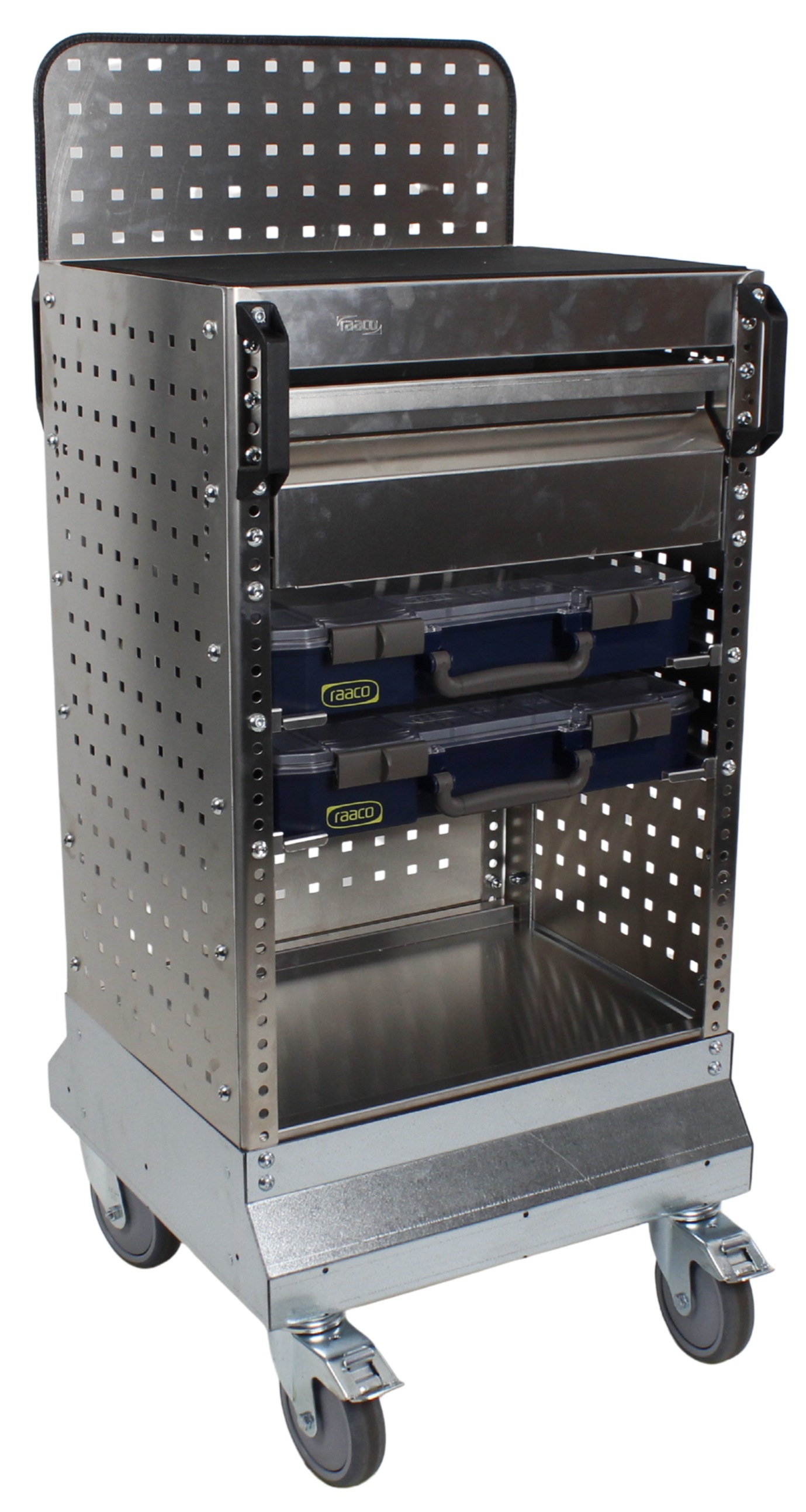

Workshop Cart CarryLite 80 Combination An excellent mix of storage options makes this the best all rounder. This compact roller cabinet is ideal for facilities which require a flexible mobile platform to work from due to limited space. 1 Deep Drawer (150mm) with recessed handle release mechanism. 2 recessed CarryLite 80 compartments for your cases. Please note that the CarryLites are not included. Let us know if you need them. 1 open compartment for larger tools and equipment. Perforated panels with Super Clip tool wall accessories for easy access. Work surface with removable rubber mat. 4 low resistance castors, 2 with brakes. Each corner has a handle, just pull or push using the closest ones. Dimensions (HxWxD): 967 (1157 including back panel) x 495 x 480 mm Unloaded Weight : 21.5 kg Max Recommended Weight : 125 Kg Item No.: 190411 EAN: 5733439190411

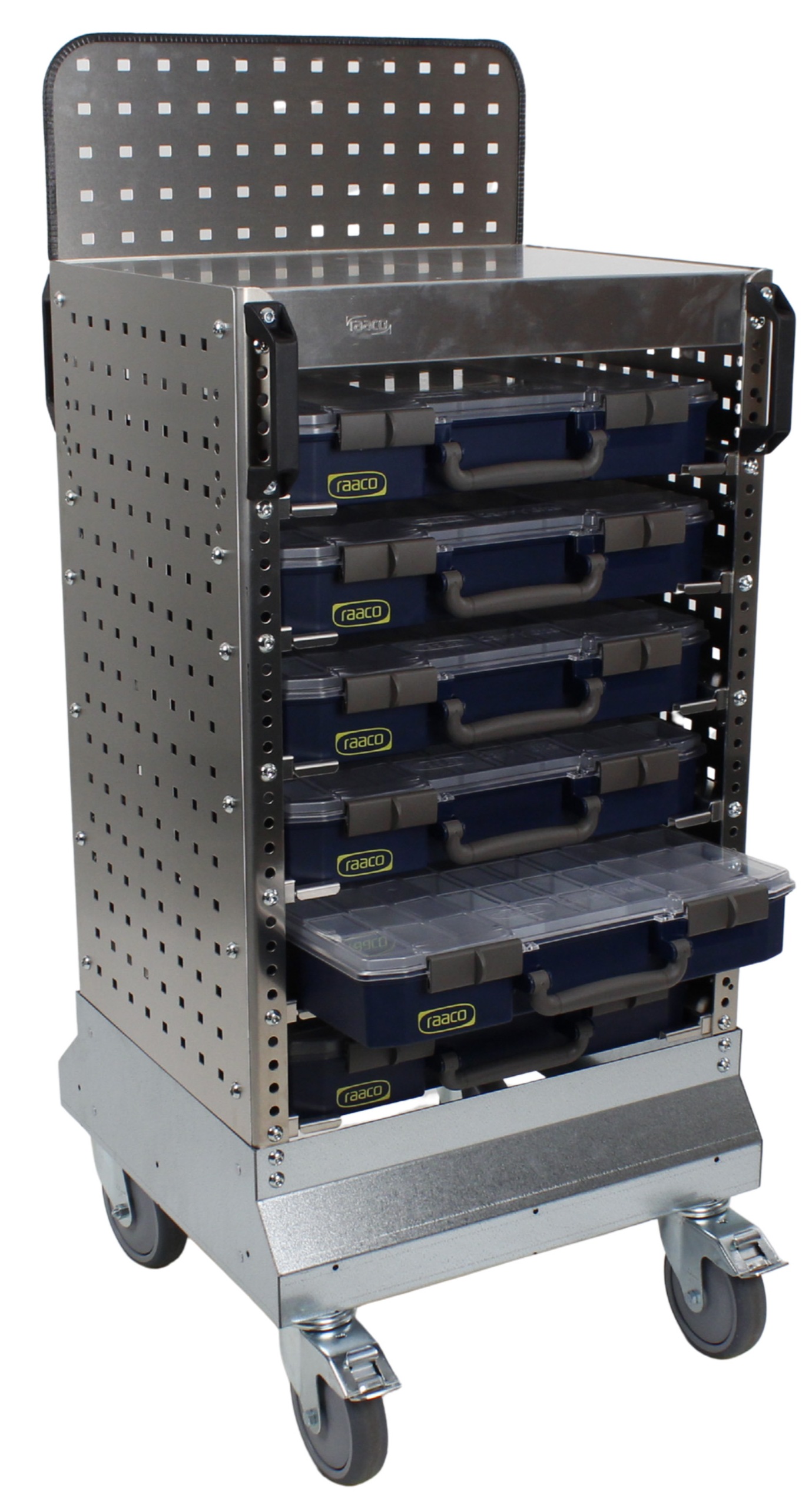

Workshop Cart CarryLite 80 When all you want is a quick and easy way to not only transport your CarryLites from one place to another whilst also having a place to work, this is for you. 6 recessed CarryLite 80 5x10 compartments for flexible organised and removable materials and tools storage (CarryLite 80s not included). Work surface with removable rubber mat. 4 low resistance castors, 2 with brakes. Each corner has a handle, just pull or push using the closest ones. Dimensions (HxWxD): 967 (1157 including back panel) x 495 x 480 mm Unloaded Weight : 18.5 kg Max Recommended Weight : 125 Kg Item No.: 190398 EAN: 5733439190398

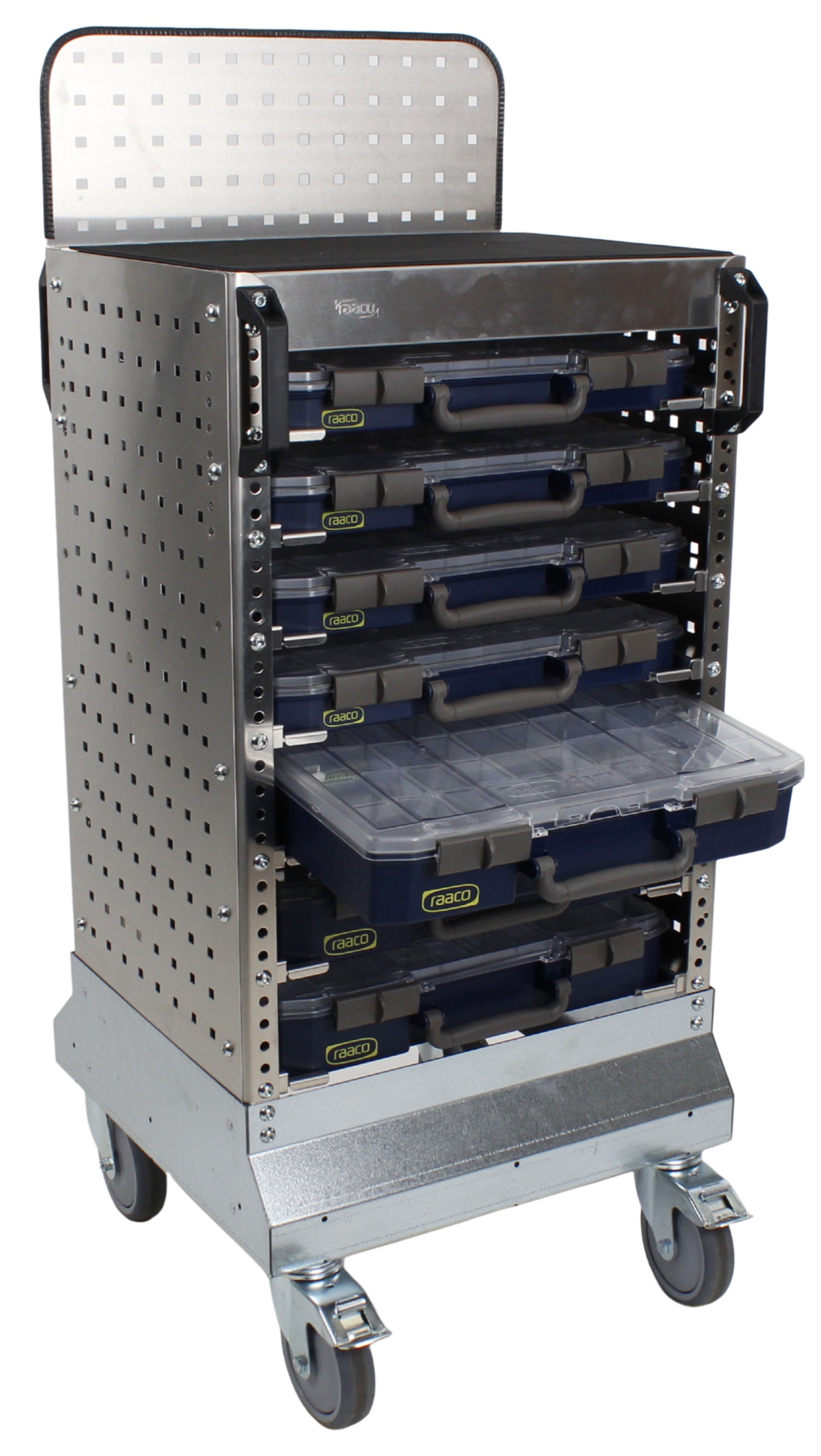

Workshop Cart CarryLite 80/55 When you have a mix of CarryLite cases, this allows you to move both the 80s and 50s whilst of course having a work surface at an ergonomic height. 3 recessed CarryLite 80 5x10 compartments for flexible organised and removable materials and tools storage (CarryLites not included) 4 recessed CarryLite 55 5x10 compartments for extra organisational capacity of smaller materials and components. Perforated panels with raaco SuperClip tool wall accessories for easy access. Work surface with removable rubber mat. 4 low resistance castors, 2 with brakes. Each corner has a handle, just pull or push using the closest ones. Dimensions (HxWxD): 967 (1157 including back panel) x 495 x 480 mm Unloaded Weight : 19 kg Max Recommended Weight : 125 Kg Item No.: 190404 EAN: 5733439190404

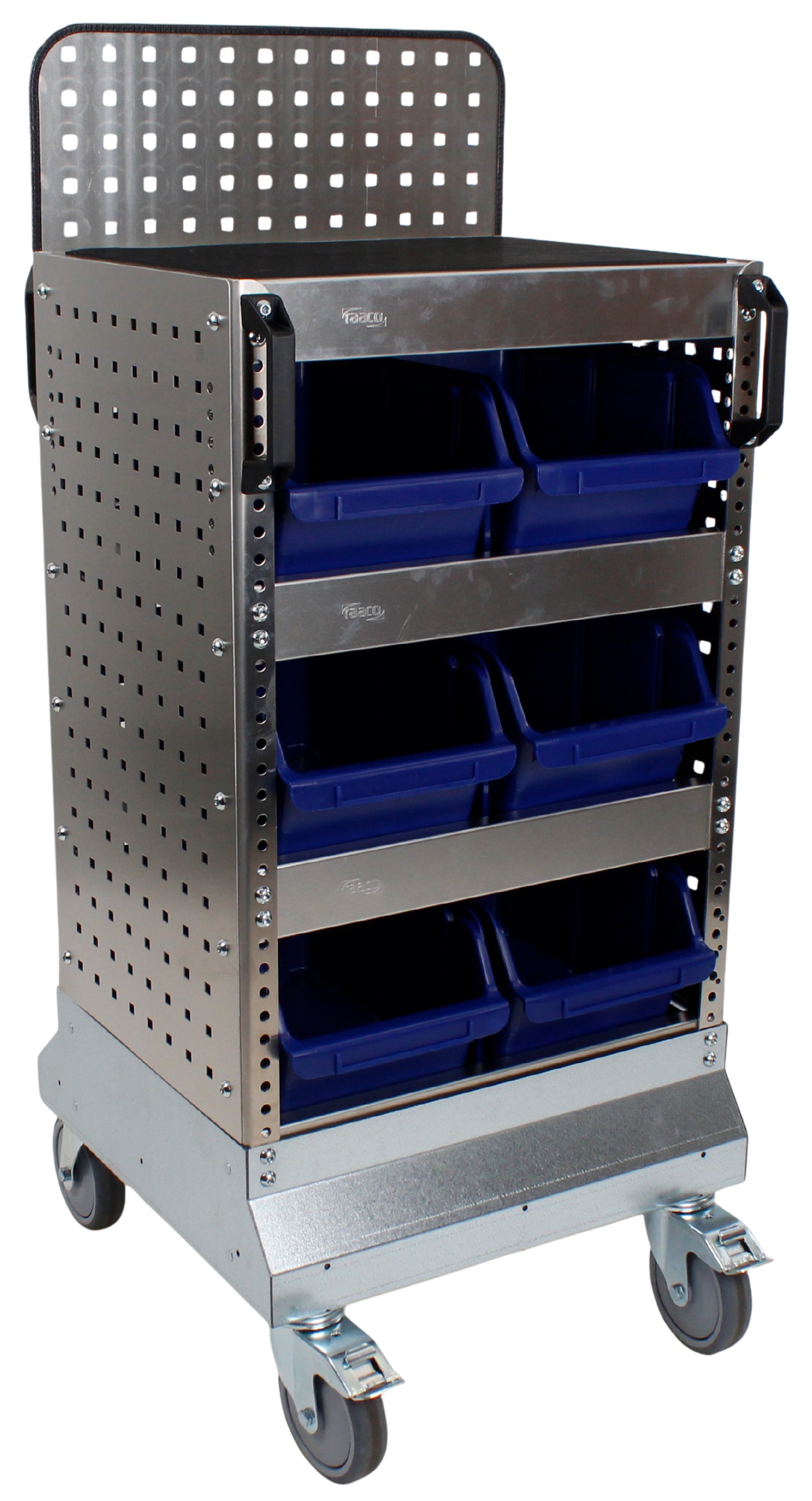

Workshop Cart with 3 Shelves The multiple shelves can be used to move a combination of small and larger tools and components. We all know how space can be tight and this trolley allows you to bring your own work space. 3 full aluminium shelves, with a stepped front edge to keep content in place during transportation. Shelves are compatible with Pro bins. These are not provided, but we can provide them as part of your solution. Perforated panels with Super Clip tool wall accessories for easy access. Work surface with removable rubber mat. 4 low resistance castors, 2 with brakes. Each corner has a handle, just pull or push using the closest ones. Dimensions (HxWxD): 967 (1157 including back panel) x 495 x 480 mm Unloaded Weight : 20 kg Max Recommended Weight : 125 Kg Item No.: 190428 EAN: 5733439190435
